• AUTOMATIC WIRE MESH WELDING LINES
  • Home >Our products
factoryshow

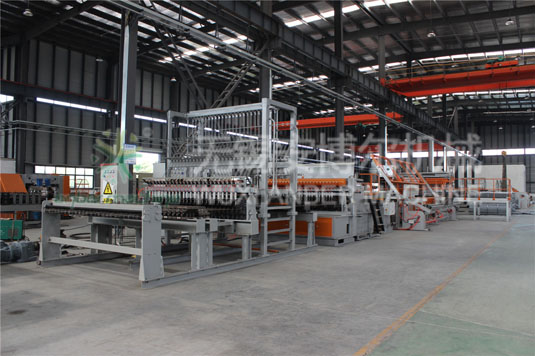

Full auto mesh welding line

factoryshow

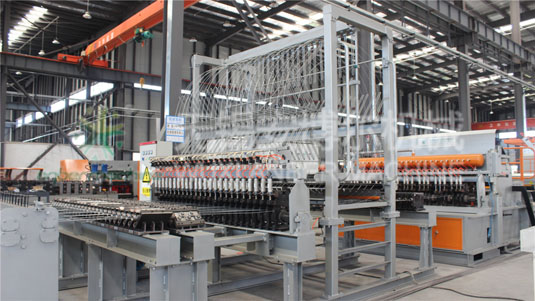

Mesh welding line

factoryshow

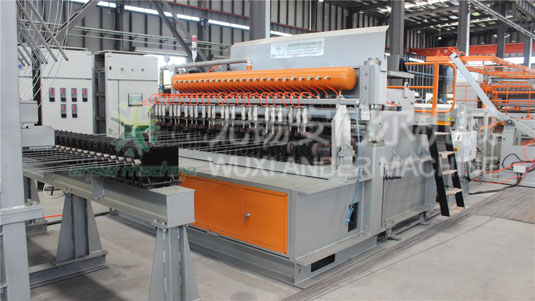

Mesh welding machine

factoryshow

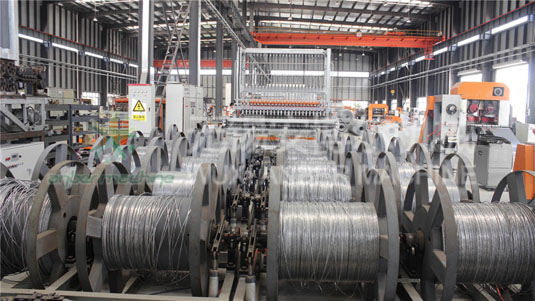

Spooler wire pay off

factoryshow

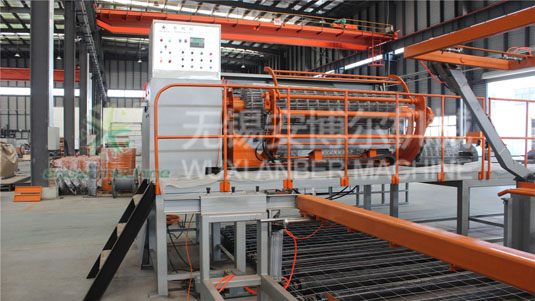

Welded mesh recoiling machine

  • 01. DESCRIPTION
  • The full auto mesh welding line produces the welded mesh panel for wire diameter of 3-5mm, and the roll welded mesh for wire diameter of 2.5-5.0mm
  • 02. PARAMETER
    • Model
    ABE-3/6-2400C
    Max width of the panel mesh
    2400mm
    Max length
    6000 mm
    Line wire spacing
    50-200mm
    Cross wire spacing
    50-200mm
    Wire diameter
    3-6mm
    Feeding way
    Line wire
    In coils
    Cross wire
    In coils
    Number of welder
    24points
    Max. welding speed
    60-90 meshes/minute
    Electric capacity
    500KVA
    Air consumption
    ≥0.8Mpa, 2m3/min
    Cooling water consumption
    ≥0.3Mpa, 3m3/min
  • 03. LAYOUT
