• FULL AUTO MESH WELDING LINE WITH RECOILER & CUTTER
  • Home >Our products
factoryshow

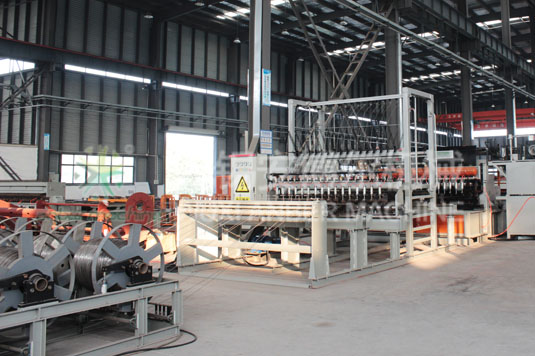

Full auto mesh welding machine

factoryshow

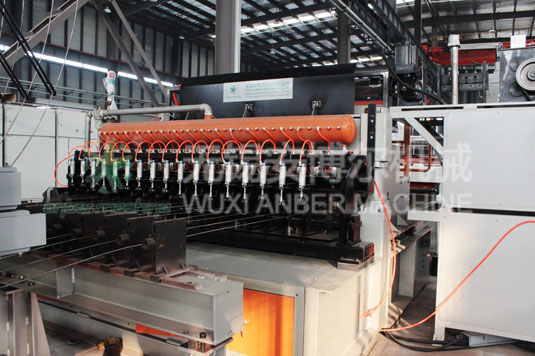

Coil in mesh welding machine

factoryshow

Cross wire feeding system

factoryshow

Welding mesh cutting system

factoryshow

Mesh recoiling machine with auto-cutter

  • 01. DESCRIPTION
  • The full auto mesh welding line produces the welded mesh panel for wire diameter of 3-5mm, and the roll welded mesh for wire diameter of 2.5-5.0mm
  • 02. WORKING CONDITION
  • Ambient air temperature range -5℃~ 45℃
    Power voltage: within ±10% (electrical mesh frequency is rated value)
    Power frequency: ≤±1% (electrical mesh voltage is rated value)
    Working environment: all equipment should be put in a ventilated, rainproof, moisture proof and dust proof place and away from the violent vibration and bumpy occasions.
  • 03. PARAMETER
    • Item Machine requirement Remark
    Collector Welding mesh max length: (panel) 4000mm; (roll)20-50m
    Max width:2500mm
    Roller: 6-2.5m×2m
    Roller: 140mm
    Motor: 1.5w
    Weight: 1.8T
    Welding system Transformer: 125KVA×4
    Welding speed: 55-70 strokes/min
    Line wire + cross wire: 3-5mm
    Electricity Voltage：380V
    Frequency:50HZ
    Outer transformer capacity: ≥350KVA
    Distance from the transformer to welding machine: ≤50m
    Cable 3×150mm²+1×75mm²
    Water Water quality: Closed loop with distilled water or tap water hardness of 450 or less Water quality fluent transformer
    Water consumption: 0.3Mpa, 3 m³/min
    Water pump lift: 10m
      Air pressure: 0.5-0.7Mpa (air source: 0.8Mpa)
    Air Air consumption: 2m³/min
      Air pump: flow: ≥1m³/min, pressure: 0.8Mpa
      Air tank capacity: ≥ 0.5m³
    The full production line needs 3 workers, the pay-off needs one, check the material and the feeding the wires; electric cabinet needs one to response for the full production line, one to unload the welded mesh.
  • 03. PARAMETER
    • Model ABE-3/6-2400C ABE-5/12-2400C
    Mesh width 2500mm
    Wire diameter φ3～5mm Mesh panel Recoil wire dia.≤φ5mm
    Line wire spacing 150mm Manual adjustment
    Cross wire spacing 50mm PLC device
    Feeding method Line wire Coil ≤φ600×φ800(ID×OD)
    Cross wire Coil ≤φ600×φ800(ID×OD)
    Welding head 16+1
    Welding speed 55~70strokes/min
    Welding head 2510 ~ 4020N, adjustable
    Motor list   Attach 1
    Required outer transformer ≥350kVA
    Production line size (around) 38m(L) ×11m(W) ×3.5m(H)
    Total Weight (around) 25.6t
  • 04. LAYOUT
