• FULL AUTO MESH WELDING LINE WITH RECOILER & CUTTER
factoryshow

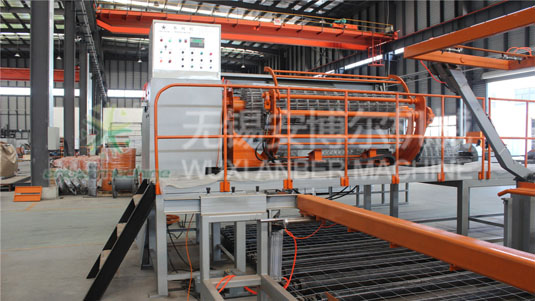

Full auto mesh welding machine

factoryshow

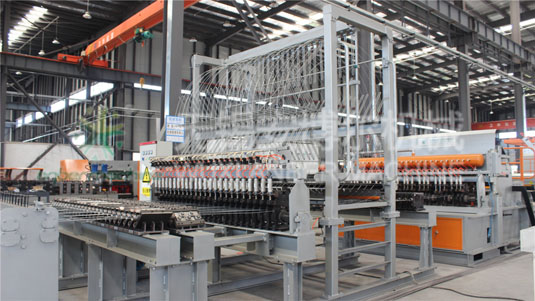

Coil in mesh welding machine

factoryshow

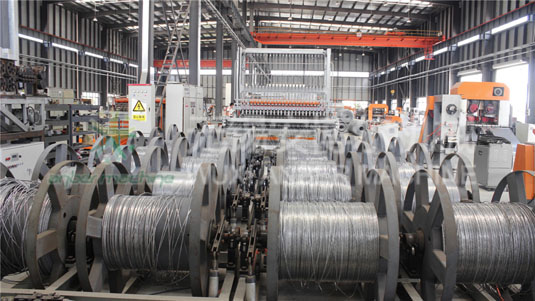

Wire pay-off

factoryshow

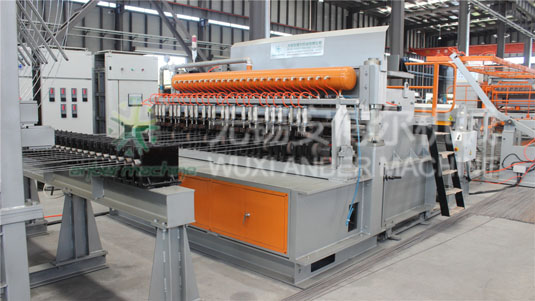

Cross wire feeding system

factoryshow

Mesh recoiling machine with auto-cutter

  • 01. DESCRIPTION
  • Both line wire coils and cross wire coils for the auto mesh welding machine are automatically straighten, cut and feed. The finished mesh is also automatically recoiled and cut. Line wires are automatically straightening, storage and feeding. Cross wires are automatically straightening, storage and feeding in the production line. Compared with ordinary reinforcing mesh welding equipment, both line wires and cross wires are fed with coils. Automatically feeding, recoil and cut and discharge the welded mesh roll which maximized save labor and greatly increased production.
  • 02. COMPOSTION
  • It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh blanking and convey device, mesh coiling machine, pneumatic system, electrical control system and cooling system.
  • 03. PARAMETER
  • Model ABE-3/6-2400C
    Max. width 2400mm
    Max. length 6000mm
    Line wire spacing 500mm-200mm
    Cross wire spacing 500mm-200mm
    Wire diameter 3mm-6mm
    Feeding way Line wire Coil
    Cross wire Coil
    Number of welder 24 Point
    Max. welding speed 60-90 meshes/minute
    Electric capacity 500KVA
    Air consumption ≥0.8MPa, 2㎡/min
    Cooling water consumption ≥0.3MPa, 3㎡/min

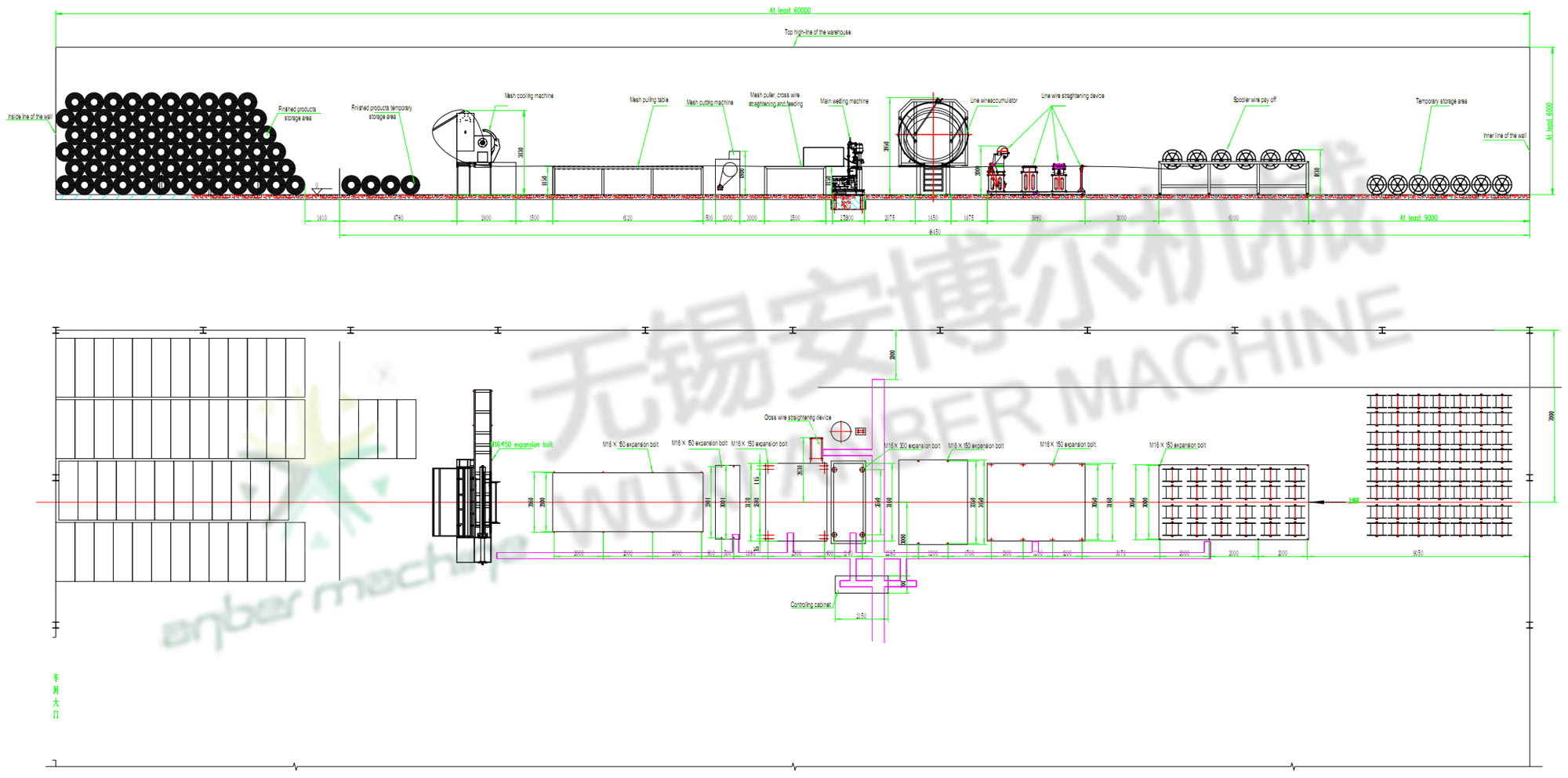

  • 04. LAYOUT
