• PRE-CUT REINFORCING MESH WELDING LINE
  • Home >Our products
factoryshow

Pneumatic mesh welding machine

factoryshow

Coil in pcs out mesh welding line

factoryshow

Rebar welding production line,

factoryshow

Industrial fence welding machine

factoryshow

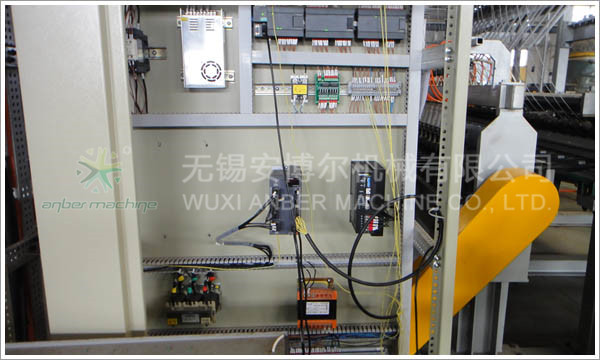

Control cabinet

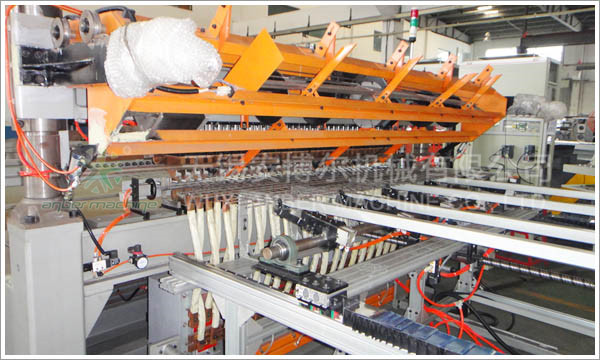

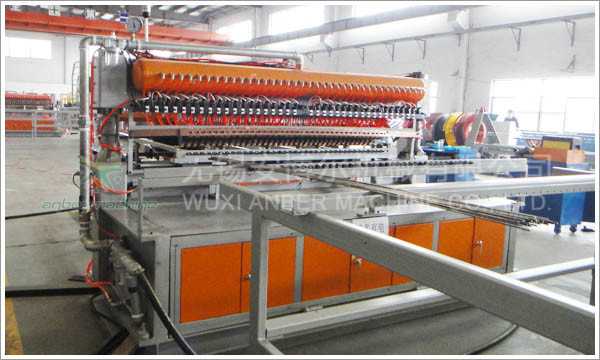

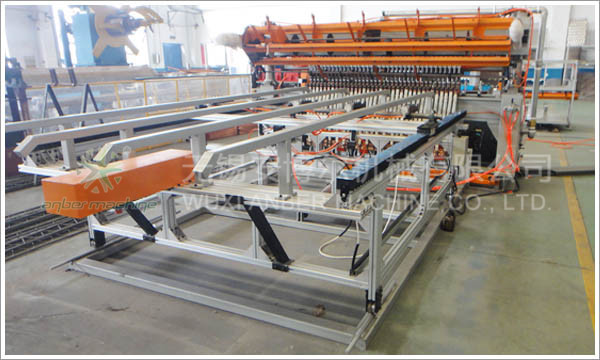

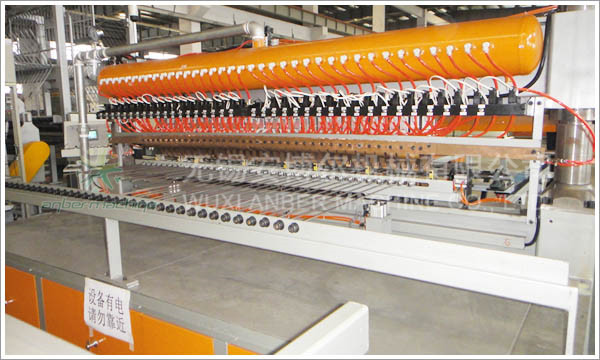

  • 01. DESCRIPTION
  • Reinforcing mesh welding machine is the specialized equipment for wire mesh building steel, fence and any other mesh.This machine welds the line wires and cross wires of the steel to be solid mesh in the principle of multi-electrode resistance welding. It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh laying and convey device, pneumatic system, electrical control system and cooling system. The material can be rolled ribbed steel wire, cold or hot rolled round steel wire.
  • 02. COMPOSTION
  • It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh blanking and convey device, mesh coiling machine, pneumatic system, electrical control system and cooling system.
  • 03. PARAMETER
    • Model ABE-3/6-2500P ABE-5/12-2500P ABE-5/12-3300P
    Diameter 3mm-6mm 5mm-12mm 5mm-12mm
    Max. width 2500mm 2500mm 3300mm
    Number of welder 24 Points 24 Points 32 Points
    Capacity of transformer 600KVA 800KVA 1000KVA
    Line wire spacing 500mm-200mm 100mm-300mm 100mm-300mm
    Cross wire spacing 500mm-200mm 100mm-300mm 100mm-300mm
    Max. welding frequency 25-45 Times/minutes 15-30 Times/minutes 15-30 Times/minutes
    Work pressure of pneumatic system ≤0.8Mpa
    Pressure of cooling water 0.2Mpa-0.3MPa
    Consumption of compressed air ≥ 3㎡/min
    Loading mode of line wire Pre-cut; Straightness≤3mm/1000mm
    Loading mode of cross wire Pre-cut; Straightness≤3mm/1000mm
  • 04. LAYOUT
