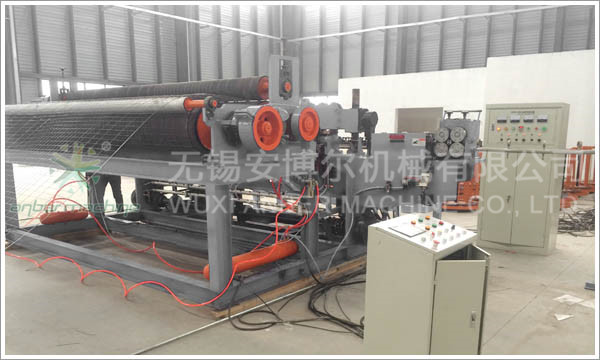

Full auto mesh welding machine

factoryshow

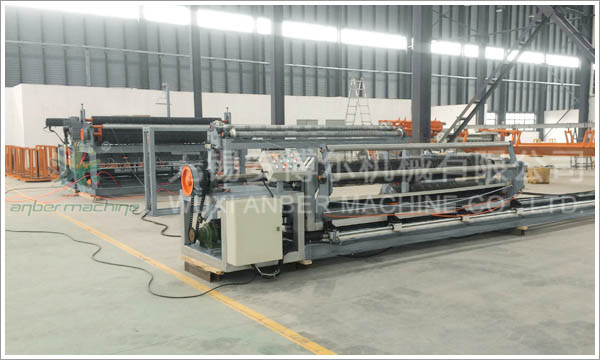

DWG-300 full auto mesh welding line

factoryshow

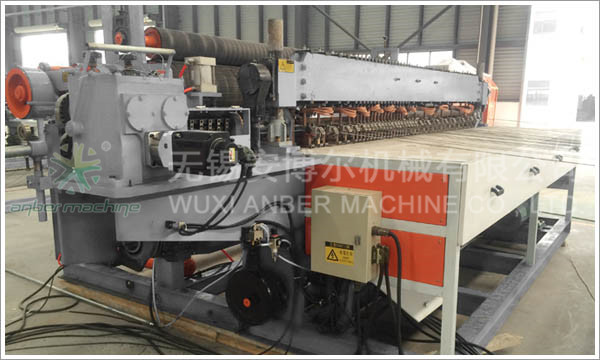

Mesh welding line

factoryshow

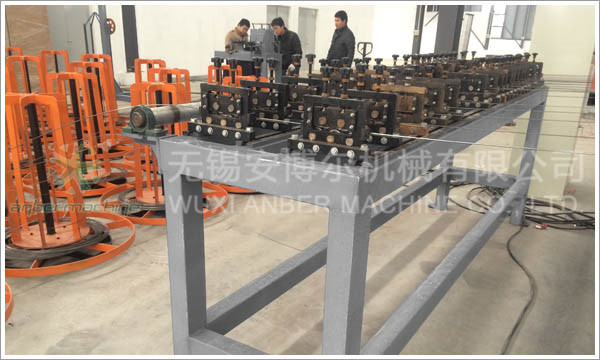

Straightening system

factoryshow

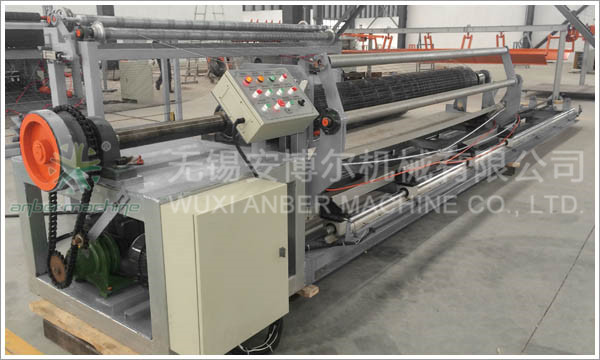

Mesh collection system

  • 01. DESCRIPTION
  • With the high-speed development of construction industry and the application of new technology, steel bar welded mesh, as a new type, high efficiency, energy saving, reinforced concrete structure building material, has been architecture widely recognized. It has increased the strength of structure, steel saving, labour saving and convenient transportation and construction, high dimensional accuracy, easy to specialization, large-scale production, high comprehensive economic benefits etc. Many countries have made the corresponding regulations and standards to expand promotion of welded steel fabric in various fields, now the welded steel fabric has been widely and mainly used in construction, industrial and civil construction concrete; transportation: high-speed railways, highways, tunnels, bridges, airports; water conservancy, port, electricity, and warehouse facilities; environmental protection facilities, entertainment; coal industry, animal husbandry, forestry, husbandry, etc.
    DWG - 3000 mesh welding machine (as shown in figure 1) absorbs foreign advanced experience, on the basis of advanced technology and combined with domestic actual production requirement. The machine can weld hot rolled ribbed steel bar, cold rolled ribbed steel bar, round ribbed steel bar, light round for high quality cold drawn steel cross welding, large output, high precision, easy modification, operation, low failure rate, energy-saving, low consumption and high quality.
  • 02. FEATURES
  • It’s pneumatic welding, servo drive and PLC controled, the mesh width, mesh opening can be stepless adjusted accurately.
    Set welding parameter on the touch screen to be easier for adjust.
    There are buttons and switches on the operatiob panel, you can choose the welding method and control the movement
    Welding wire diameter: 1.7-3.5mm
    Mesh width: 3000mm
    Mesh size: 50-200mm, can be adjusted
    The electrode can be move, welding speed is 40 strokes/min
    To promise good welding quality, the welding current, welding time, welding pressure, etc can be adjusted according to the material.
    Key transmision part, working part, electric part, penumatic part are apply international brand, can support long service life and high accuracy.
    Welding transformer, electrode, secondary wire and main circuit of SCR control system are water cooled.
    According to the power supply, you can choose one-time welding or 3-time welding.
    There is less spark and low noise in the welding proceed.
    Easy operatiob and maintain.
    Match with basement, easy for installation

  • 03. PARAMETER
  • Rated power (welding main machine): 100~300KVA
    Power supply: 380V, 50Hz
    Output voltage: 10.6V
    Max. Current when weld: 150A
    Max. Welding width: 3000mm
    Line wire space: 50,100,150,200mm
    Welding points: 29(30)
    Welded wire diameter:
         Line wire: Φ4~Φ6mm
         Cross wire: Φ6~Φ10mm
    Welding speed: 40 strokes/min
    Cooling water pressure: ≥0.2MPa
    Air supply pressure: ≥0.75MPa
    Electrode pressure: 0.25~0.69Mpa³
    Compressed air consumption: 3m /min
    Line wire feeding method: Wire coil straighten auto and feed in with the rubber roller
    Cross wire feeding method: Wire decoiler, striaghtening, feeding, cutting and wire drop automatically
    Machine weight: 20T
    Working ambient humidity: 30~85
    Working ambient temperature: 0~40℃
  • 04. MACHINE SIZE
  • Installation space: about 30m*7m
    Line wire pay-offs (L*W*H): ~4000×5000×1100mm
    Line wire straightening sturcture (L*W*H): ~600×900×1200mm
    Welding machine (L*W*H): ~5200×1300×1800mm
    Rubber roller mesh pulling system (L*W*H): ~4700×1800×2000mm
    Mesh length sensor part (L*W*H): ~3300×500×1500mm
    Mesh clampsing cylinder control frame (L*W*H): ~3300×600×1800mm
    Mesh recoiling part (L*W*H): ~52000×1300×800mm
    Wire feeding assist part (includes on-off control part)
    Cross wire lift frame part
    Control cabinet (L*W*H): ~ 1200×600×2200mm
    Control panel (L*W*H): ~500×420×1080mm
    Others: like air pipe, cross wire feeding frame, spare parts, etc
  • 05. MATERIAL REQUIREMENT
  • Strength standard value: 450-650 MPa, elongaration: δ10= 6-12%
    There is no dust or insulation material, etc which will inflent the welding quality
    Material length tolerance should match with welding technology
    Welding material should match with related welding standard

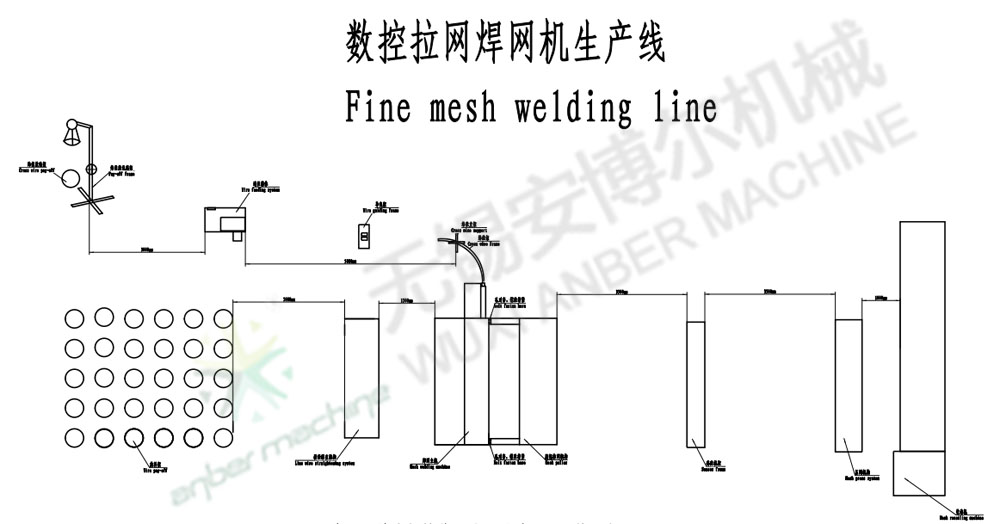

  • 06. LAYOUT
