  • 01. DESCRIPTION

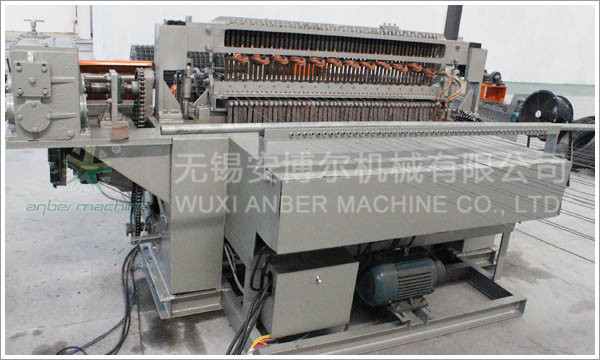

  • This mesh welding machine is of high automatic, and can weld the wire from different small and middle wire diameter and form different width and different mesh opening, its speed is fast and the mesh opening is even, the welding point is reinforced and greater tensile strength.
  • 02. PARAMETER
    • Model ABE-PDHW01 ABE-PDHW02 ABE-PDHW03 ABE-PDHW04
    Wire diameter

    0.4mm-0.9mm

    0.6mm-1.0mm

    0.8mm-1.8mm

    1.2mm-1.8mm

    		 1.4mm-2.7mm 2mm-3mm
    Mesh width Max.1200mm Max.1500mm Max.1800mm Max.2500mm
    Mesh opening 12.7mm-25.4mm     12.7mm-150mm

    Welding speed

    (strokes/min)

    		 120/90 100/90/70 60-80 40-50
    Mesh length About 120m About 100m 80m-100m 100m
    Machine size 2700*1750*1450mm; 3100*1750*1450mm; 3500*1750*1450mm; 3900*1750*1500mm; 4300*1750*1500mm 4100*2100*1800mm; 4500*2100*1800mm
  • 03. LAYOUT
