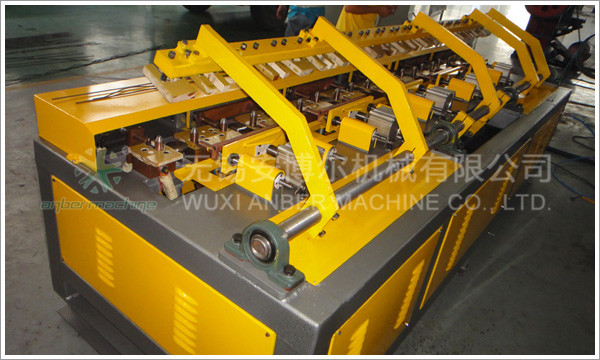

• FLAT TRUSS GIRDER WELDING MACHINE
  • Home >Our products
factoryshow

2D Truss girder welding machine

factoryshow

flat truss girder welding machine

factoryshow

flat lattice girders welding machine

factoryshow

steel rebar lattice girders welders

factoryshow

2D truss girders

  • 01. DESCRIPTION
  • The truss girder welding machine contains Line wire straightening unit, Line wire accumulator, inclined beading bending & moulding structure, Welding system, Truss bridge feeding system, Truss bridge cutting, material receiving system.
  • 02. PARAMETER
  • Line wire diameter (upper): 3-5mm
    Line wire diameter (lower): 3-5mm
    Diagonal wire diameter: 3-5mm
    Diagonal spacing: 300mm or according to customer's requirement
    Straightening speed : 30m/min
    Straightening ratio : ≤2mm/m
    Cutting precision : ≤2mm
    Designed forming force : 40 ton
    Designed oil pressure : 25MPa
    MAX. Length of bending: 3m
    Mold Bending mold material: 65Mn
    Mold Bending mold hardness: HRC58-62
    Welding transformer : 125KVA×5
    Welding pressure : 2500N-5000N stepless adaptable
    Power-supplied voltage/frequency : 380V/50HZ
    Power-supplied transformer :≥160KVA

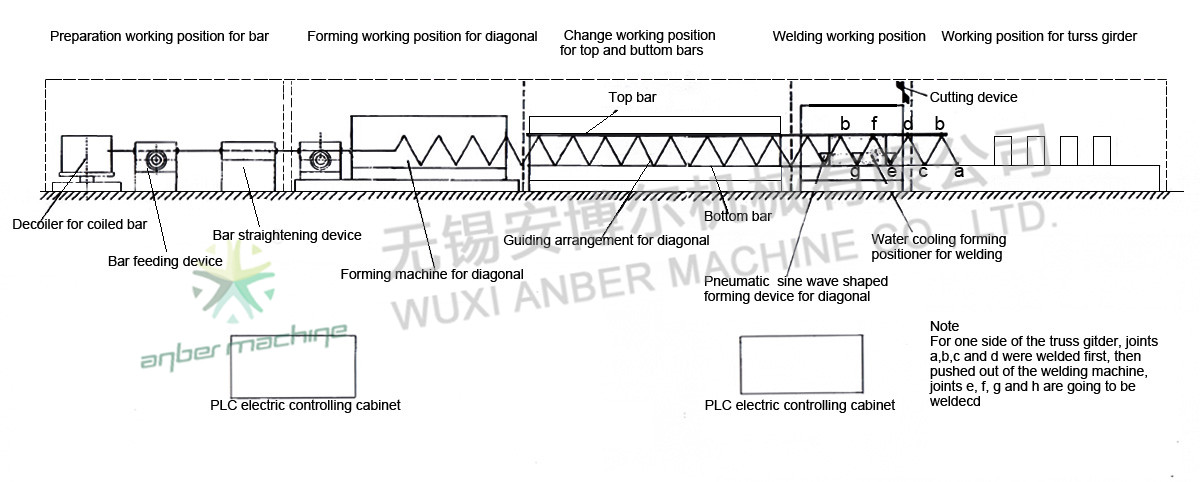

  • 04. LAYOUT
