3D panel welding machine

factoryshow

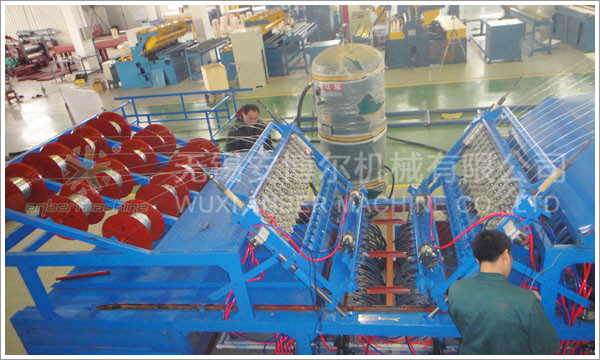

3D panel production line

factoryshow

3D panel machinery, Utilizing sandwich board machine

factoryshow

3D panel welding machine

factoryshow

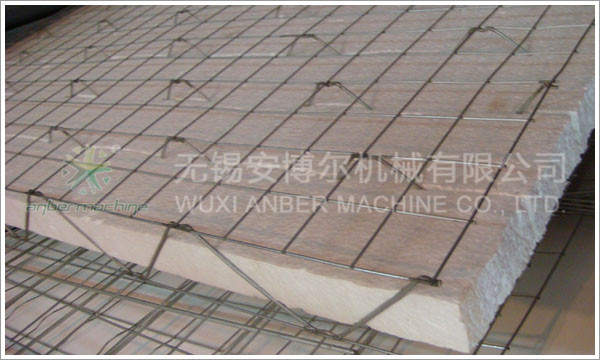

3D pannel

  • 01. DESCRIPTION

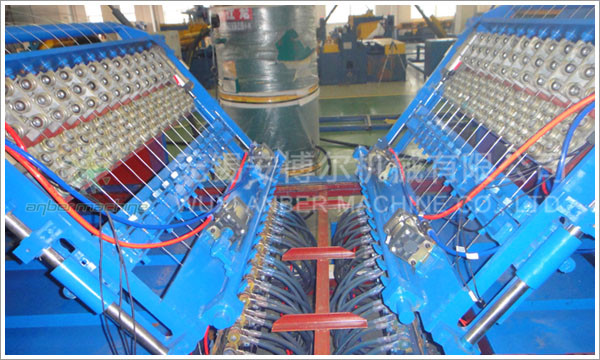

  • The wire mesh-welding machine produces two mesh sheets. Then they are fed to the integrating machine in a vertical way, while the insulation material is placed between them. The 24 straightening and cutting sub-systems are fed with wire from their pay-off stations. Then the wire rods are fed through the insulation material and cut in pre-determinate lengths. The welding head moving in the predetermined steps, welds the wire rods to the appropriate positions, keeping the correct distance of the wire mesh sheets and producing the sandwich panel. A transporting roller conveyor moves away the finished product while the factory crane moves it to the storage area. A NC programmable wire mesh welding line model for the production of reinforcement wire mesh in sheets with line and cross wires fed from coil.
  • 02. PARAMETER
  • Wire diameter: 1.8-2.8mm
    Distance between the two mesh sheets: 70 mm -150 mm
    Wire mesh width max. : 1200 mm
    EPS plate material: Flame retardant polystyrene foam board
    EPS plate thickness: 50mm-100mm
    Wire inserting structure: Sparse or dense inserted in two sides or single side
    3D panel length: min.: 2000 mm max. : 3000 mm
    Output: 360㎡/8 hours
    Air supply: 3 m3/min 0.6Mpa
    Related power: 75KVA
    Machine size: 13500X1800X1700mm
    Weight: 4000kg
