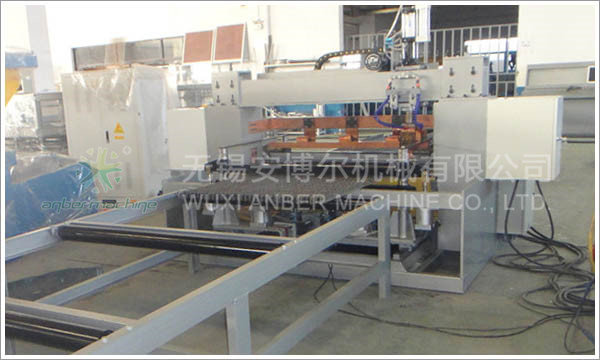

• STEEL GRATING WELDING LINE
  • Home >Our products
factoryshow

3D panel welding machine

factoryshow

3D panel production line

factoryshow

3D panel machinery, Utilizing sandwich board machine

factoryshow

3D panel welding machine

factoryshow

3D pannel

  • 01. PARAMETER
  • The machine adopts hydraulic device to control welding electrode;
    bar range : 2.5-5mm
    Bar width: 25mm-60mm
    Cross bar range: 5-8mm(twisted square steel )
    Welding panel width: 1M; length:6M
    Production capacity : 70-100M2/shift (8hours ), one panel per two hours
    Pitch of flat bar: 25,30,40.50,60mm
    Pitch of cross bar: 30,50,100.160mmmm
    Input power: 3phase,380V/50Hz
    Welding transformer: 200 kva
    Overall size: 16*2.5*1.5M
    Weight : 4000kg
  • 02. AUXILIARY EQUIPMENT
  • Bracket and grating flatting table
    Tip roller
    Butt welding machine
