• 01. DESCRIPTION

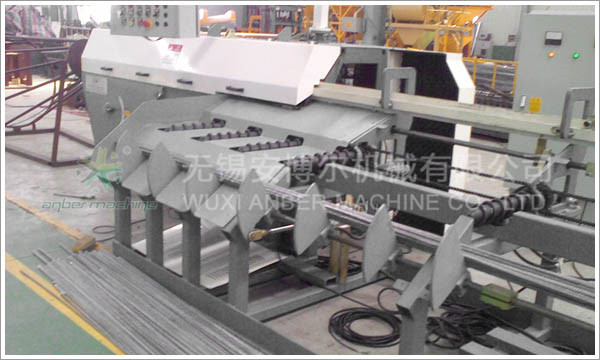

• Pneumatic wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the reinforcing mesh welding machine.

• 02. COMPOSTION
• Pneumatic wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the reinforcing mesh welding machine, its standard construction contains: pay-off, feeding system, straightening spinner system, pneumatic clutch cutting system, normal stocking rack, controller with PLC and Spare parts.

• 03. PARAMETER

Model		ABE-GT5/10	ABE-GT6/12	ABE-GT10/14	ABE-GT8/14
Wire dia.	Rebar or round bar	Φ5-Φ10 mm	Φ6-Φ12 mm	Φ10-Φ14 mm	Φ8-Φ14 mm
	HRB335	Φ5-Φ8 mm	Φ6-Φ10 mm	Φ10-Φ12 mm	Φ8-Φ14 mm
	HRB400	Φ5-Φ8 mm	Φ6-Φ10 mm	Φ10-Φ12 mm	Φ8-Φ14 mm
Cutting length		1-12 m, or according to customer’s requirement
Speed		70-100-130m/min (3-grade adjusted)
Straightening ratio		≤2 mm/m
Cutting to lerance		Signal type, ≤±1 mm
Total power		18.5+4KW	22+4KW	30+4KW	37+4KW
