  • 01. DESCRIPTION
  • Applications: smooth round steel plate, cold rolled ribbed steel bars, hot rolled ribbed steel bars, the straightening and cut-off Good straightening effect: Straightening ratio ≤ 3mm / m, the surface almost no scratches, no distortion. Intelligent control: PLC programmable control, cut-length accuracy and can be adjusted, automatic counting, the number of downtime. Can used to straight the new Ⅲ grade steel, the advanced way to ensure the straightening does not damage the cross-rib reinforced, without causing longitudinal ribs to reverse, the surface wear. Cutting method: hydraulic cutting, low noise, less wearing parts.
  • 02. COMPOSTION

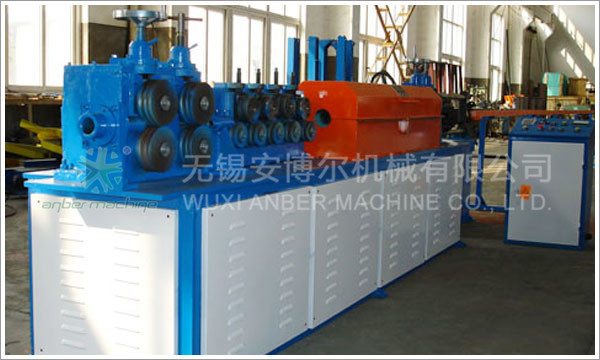

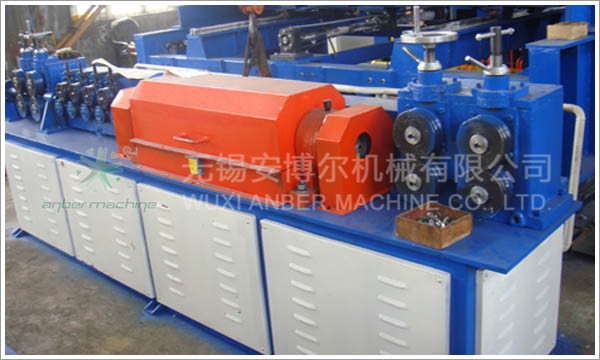

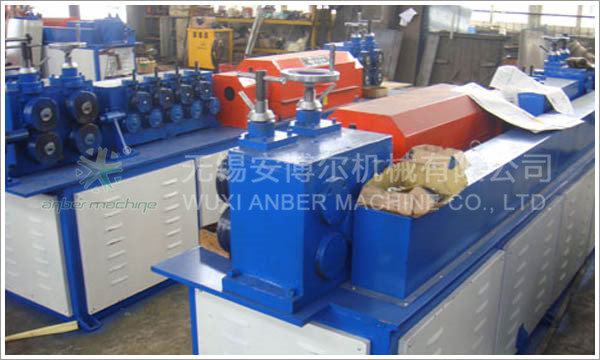

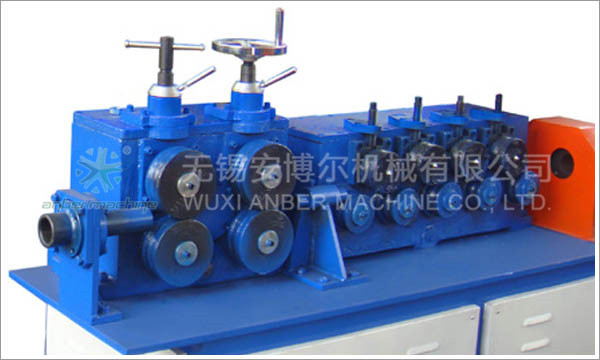

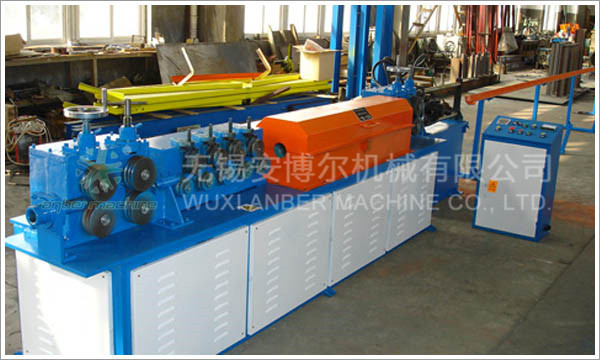

  • Pneumatic wire straightening and cutting machine is mainly used to straight and cut the wire to feed in the reinforcing mesh welding machine, its standard construction contains: pay-off, feeding system, straightening spinner system, pneumatic clutch cutting system, normal stocking rack, controller with PLC and Spare parts.
  • 03. PARAMETER
  • Model

    ABE-HT6/14

    ABE-HT4/8
    Wire dia Φ6-Φ14 mm Φ4-Φ8 mm
    Cutting length 1-12 m, or according to customer’s requirement
    Straightening ratio ≤2 mm/m
    Max. speed 30m/min
    Cutting tolerance ±3 mm
    Roller diameter Φ140mm
    Total power 18.5+5.5KW 15+4KW
    Overall size Main parts 2700×800×1250mm
    Hydraulic station 1050×900×1120mm
    Collection table 12000×600×1050mm
