  • 01. DESCRIPTION

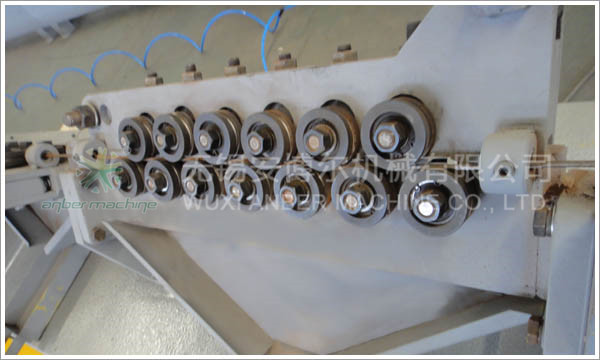

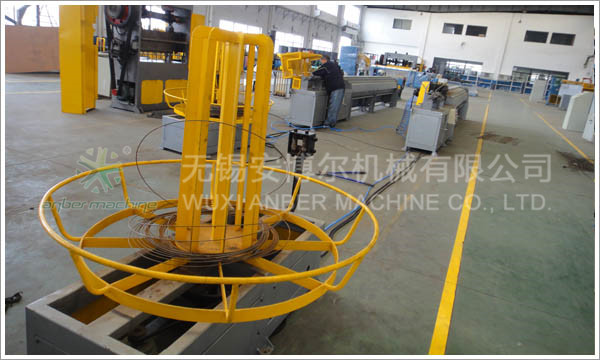

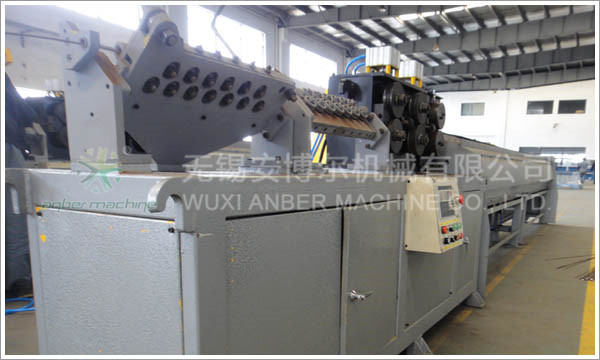

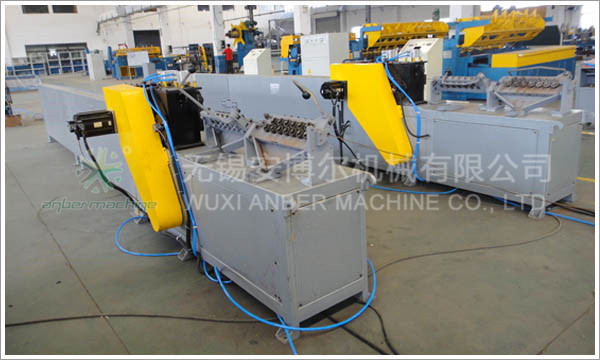

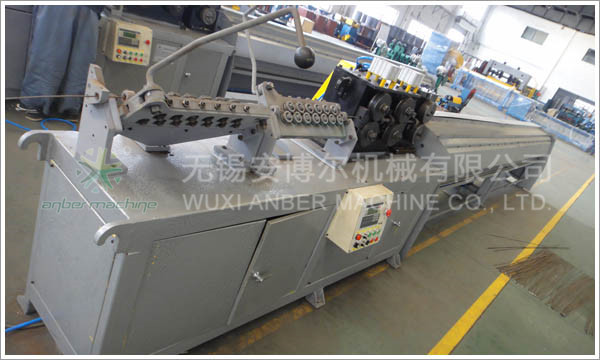

  • The high-speed straightening and cutting machine designed by Anber machine is suitable to straighten and cut coil wire, hot rolled bar, cold rolled ribbed steel, it won’t scrab the  rib, and less cutting tolerance, good straightness, easy operation and high efficiency. This machine is mainly is composed of pay-off , straightening machine (double traction, chain drive) flying wheel cutting machine, electric cabinet, 12 meter collect rack.

  • 02. PARAMETER
  • Rib wire diameter: 3-10mm
    Material: HRB335 hot rolled steel rod; deformed and plain wire
    Speed: max. 160m/min
    Cutting length: 1-12m
    Cutting way: flying wheel
    Straightening tolerance: ≤2mm/m
    Cut-lo-length tolerance: ≤2mm With approximate switch
    Total power: 15kw
    Total weight: 3000kg
    Machine size: 17m*2m*2m (L*W*H)
