  • 01. PARAMETER

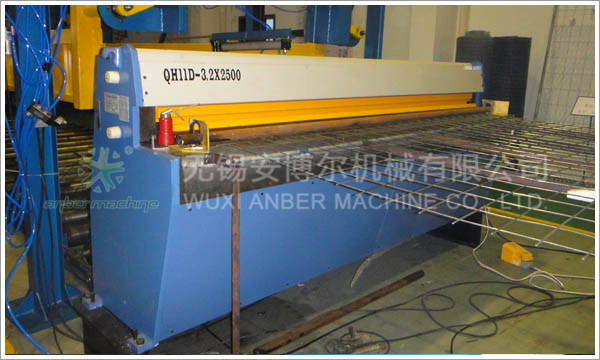

  • Model QH11D-3.5×1250 QH11D-3.5×1300 QH11D-3.2×2000 QH11D-2.5×2500 QH11D-3.2×2500
    Mesh thickness

    3.5mm

    3.5mm

    3.2mm 2.5mm 3.2mm
    Plate width 1250mm 1300mm 2000mm 2500mm 2500mm
    Shearing angle 1°30' 1°30' 1°30'; 1°20'
    Top rest distance times 47n/min
    Single travel times 10n/min
    Front-gauge distance 900mm
    Back-gauge distance 650mm

    Working table distance

    above the floor

    800mm
    Motor Model YEJ132S-4 YEJ132S-4 YEJ132S-4 YEJ132S-4 YEJ132S-4
    Power 5.5KW 7.5KW 7.5KW 7.5KW 7.5KW
    Revolution 1430r/min
    Machine size Length 1860mm 1860mm 2624mm 3124mm 3124mm
    Width 2100mm 2100mm 2100mm 2100mm 2100mm
    Height 1180mm 1180mm 1180mm 1180mm 1180mm
    Machine weight 1440Kg 1440Kg 1800Kg 2000Kg 2100Kg
