• Prime 12B STEEL BAR STIRRUP BENDER
  • Home >Our products
  • SWG12D-1 steel bar stirrup bender   |   Prime 12B steel bar stirrup bender

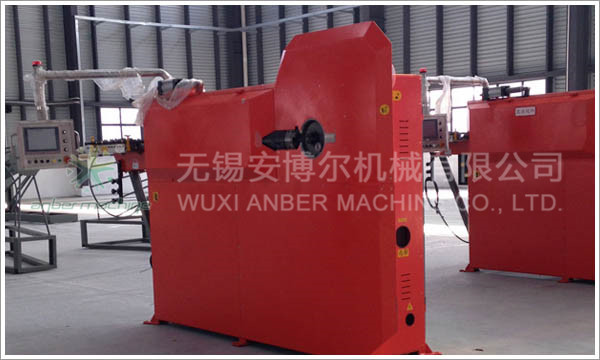

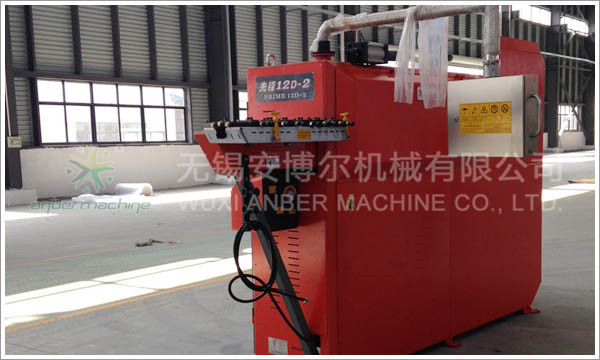

    • factoryshow

    CNC steel bar stirrup bender

    factoryshow

    steel bar stirrup bender

    factoryshow

    CNC stirrup bender

    factoryshow

    stirrup bender

    factoryshow

    stirrup bender

    • 01. CHARACTERISTICS
    • Automatic wire feeding system to ensure highly dimensional accuracy;
      Movable air compressor design, to ensure better cooling effect, easy transportation and installation;
      Split, multifuctional blade design (patented) to reduce consumption costs;
      Automatic double wire intake system with more bending shapes to bring high processing efficiency;
      High power servomotor to ensure bending bar accuracy;
      The intelligent fault identification alarm system with more convenient maintenance;
      Aerodynamic design observation door with easy, safe and fast adjustment and maintenance;
      Heavy-duty design line planes, equipped with a brake and buffer device, preventing chaotic lines caused by downtime;
      High degree automation with large storage capacity of 400 prestored processing geometric graphics for instant use;

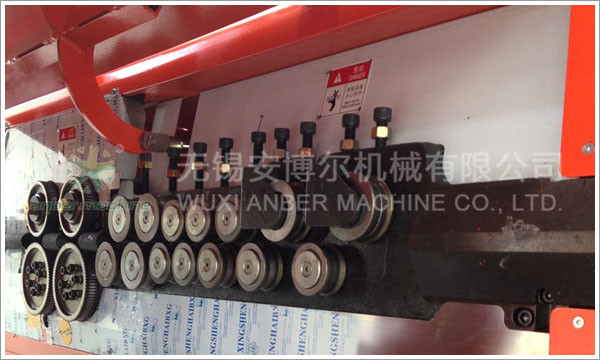

      Straightening wheels, hauling wheels and metering wheels made with special steel materials to ensure longer service life and lower operating costs; Touch-screen console to ensure easy and fast operation;
      All electrical parts are from Schneider, SIMENS, ABB or OMRON brand to ensure the service life;
      Automatic splicing device with one operator for one machine (optional).
    • 02. COMPOSITION

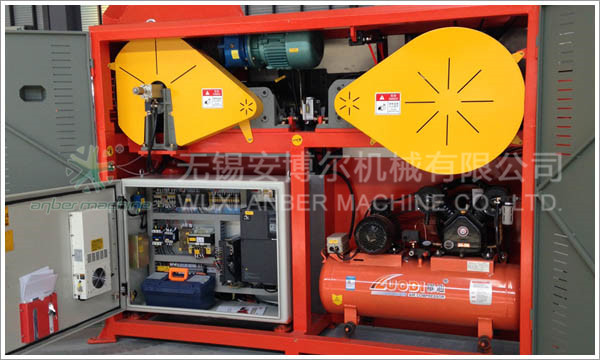

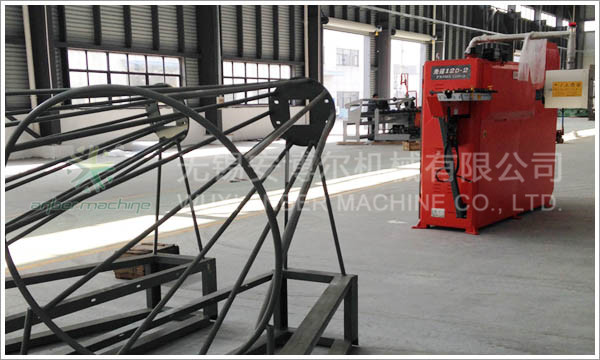

    • Pay-Off; Pre-adjusted assembly; Hauling assembly; Straightening assembly; Observation automatic door; Shear assembly; Bending assembly; Console; Bending arm telescopic cylinder; Bending servomotor; Shear motor; Hauling servomotor; Air compressor; Electric control cabinet .
    • 03. PARAMETER
    • Single wire processing capacity: Φ5 - 12 mm
      Double wire processing capacity:: Φ5 - 10 mm
      Max bending angle: 180°
      Max bending speed: 1100°/sec
      Max pulling speed: 100-130 m/min
      Max length of the stirrup: 1300 mm
      Min length of the stirrup side: 110 mm
      Length tolerance: ±1 mm
      Bending tolerance: ±1°
      Average air-compressed consumption: 6 l/min
      Average electric power consumption: 6 - 8 Kw/hour
      Voltage: 380V/50-60HZ
      Labeled electric power: 28Kw
      Overall dimension: 9m x 3m x 3m
      Overall machine weight: 4700Kg
      Bending direction: bi-direction
      Working condition:-5°-40°
    • 04. LAYOUT
